Tri-Art Manufacturing

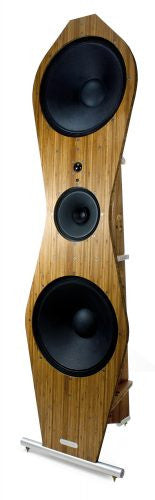

Tri-Art B-series 5 Open Loudpseakers w. Crossover

$5,530.00
  • Rated Impedance: 8 Ohm
  • Sensitivity: 97 dB (1W/1m)
  • Frequency Range: 27 – 150,000 Hz (+/- 3dB)
  • Recommended Amplifier Rating (tube amps):
    • 12 – 75 W @ 8 Ohm
  • Recommended Amplifier Rating (SS amps):
    • 25 – 150 W @ 8 Ohm
  • Driver Details

    Input 1:

    • 20 Watts
    • 8″ Full Range
    • 1″ Fabric Dome Tweeter (13,000 Hz and up)
    • Super Tweeter (50,000 – 150,000 Hz)

    Input 2:

    • Up to 150 Watts
    • 2 X 15″ Woofers

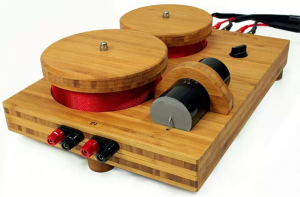

     Crossover Details

    • 2 Inputs
    • 3 Outputs (including a set of 0.5 meter jumper cables with banana plugs)
      • Output 1 (full range)
        • 100 Watt Solen attenuator
        • 47 ohm resistor
        • 100 Hz single Solen cap filter
      • Output 2 (bass)
        • Single open air inductor filter 100Hz
      • Output 3 (subbass)
        • Single open air inductor filter 50 Hz
